This is a Bluetooth, handheld science datalogger that enables students to connect wired and wireless sensors, collect data, generate graphs, and analyze results.
- 1x Fast Response Temperature Probe
- 1x Voltage Probe
- 1x Power adapter
See the Buying Guide for this item's required, recommended, and additional accessories.
Product Summary

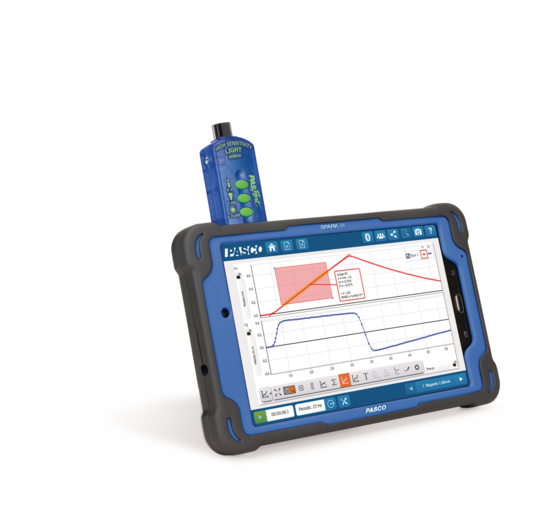

The SPARK LXi Datalogger is a Bluetooth, handheld datalogger that enables students to connect wired and wireless sensors, collect data, generate graphs, and analyze results. It is durable, splash-proof, and works seamlessly with PASCO sensors. The SPARK LXi can simultaneously accommodate up to five wireless sensors, includes two ports for PASPORT sensors, as well as two ports for the included Fast Response Temperature Probe and Voltage Probe. It can be used with PASCO Wireless sensors, PASPORT sensors, SPARKlink® Air, and the 550 Universal Interface.
Built for Student Use
- Portable
- Shock-absorbing case
- 8” Color Capacitive Touchscreen (1280 x 800 pixels)
- 1.4 GHz Quad Core Processor, 2.0 GB RAM, 16 GB Memory
Built-in Features
- Voltage and temperature sensor ports with included probes
- Speakers, microphone, and two cameras
- GPS and accelerometer
- Loaded with PASCO software: SPARKvue® for data collection and analysis, MatchGraph!, and Spectrometry
- Loaded with third-party software: Microsoft Word, Microsoft Excel, Microsoft PowerPoint, Scientific Calculator, Periodic Table, and Google Science Journal*

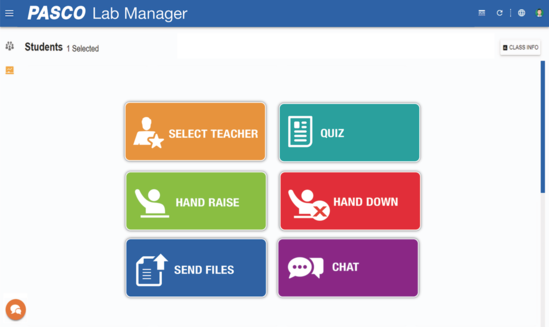

- * LXi model PS-3600A does not include the Lab Manager application
Connections
- Wi-Fi enabled
- Wireless sensors and Smart Carts connect via Bluetooth®
- AirLink, SPARKlink Air, or 550 Universal Interface via USB or Bluetooth®
- Two PASPORT sensor ports
What's Included
- 1x Fast Response Temperature Probe
- 1x Voltage Probe
- 1x Power adapter
Product Specifications
| CPU | Quad Core, 1.4GHz |
| Screen | 8.00" color capacitive touchscreen, 1280 x 800 px; 16:10 aspect ratio |
| Memory | 16 GB Internal, 2.0 GB RAM |
| Camera | 8.0 MP back camera, 5.0 MP front camera |
| WiFi | 802.11 |
| Bluetooth | 4.2 |
| PASPORT Sensor Ports | 2 |
| Built-In Sensors | 1x Voltage port w/probe, 1x Temperature port w/Fast Response Temp probe, 1x Accelerometer, 1x Microphone, 1x GPS |
Buying Guide
| Recommended Accessories | P/N | Price |
|---|---|---|
| SPARK LXi Charging Station | PS-3602 | $175 |
| Replacement Parts | P/N | Price |
|---|---|---|
| PASPORT Voltage Probe | PS-2165 | $10 |
| PASPORT Fast Response Temperature Probe (3 pack) | PS-2135 | $31 |
Product Guides
PASCO Interfaces Comparison
We offer a variety of interfaces with diverse applications. Some of our products, such as the PASPORT and ScienceWorkshop sensors, require an interface, while others do not. This helpful page compares interface features, applications, and connectivity to help you decide which interface will serve you best.
Support Documents
| Manuals | ||
|---|---|---|
| SPARK LXi Datalogger Quick Start Guide | English - 1.63 MB | |
| Knowledge Base | ||
| Devices not shown properly in SPARKvue or PASCO Capstone | Jan 26th, 2021 | |
| Manually updating SPARKvue on SPARK LXi/LX Dataloggers | Feb 18th, 2021 | |
| SPARK LXi Blink Codes Decoder | Jan 15th, 2020 | |
| Updating SPARKvue on the SPARK LX and SPARK LXi | Dec 31st, 2020 | |
