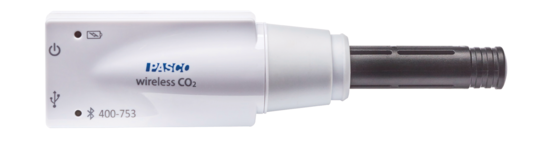

The Wireless CO₂ Sensor measures carbon dioxide gas levels and wirelessly streams data to your computers, tablets, and smartphones.
- 1x Single 250 mL Sample Bottle (SE-6938)
- 1x Micro USB Cable
See the Buying Guide for this item's required, recommended, and additional accessories.
Product Summary
Measure changes in carbon dioxide (CO2) gas levels quickly and easily with the Wireless CO2 Sensor. The sensor is temperature compensated and can operate in high humidity environments. It employs live data to make core labs, such as photosynthesis, cellular respiration, and metabolism experiments engaging and impactful. With the ability to store more than 55,000 data points, this sensor enables studies to run overnight or throughout an entire weekend, making it ideal for long-term, carbon cycling investigations. The included 250-ml sample bottle supports analyses with multiple gas sensors. Wash metabolism chamber with warm soap and water. DO NOT wash in boiling, dishwashers with hot cycle or autoclaves, as plastic will deform.
Features
- Logging ability for long-term experiments, store up to 55,000 data points
- Integrated stopper for use with included sample bottle and common glassware
- Temperature compensated for accurate results
Perform These Experiments
- Monitor CO2 levels during photosynthesis and respiration experiments
- Study carbon cycling in a model ecosystem
- Monitor CO2 levels for indoor air quality
- Measure carbon flux in aquatic environments with the waterproof sleeve
Demonstrate
- Respiration in compost or other decomposer-rich environments
- Carbohydrate consumption rates due to human activity
What's Included
- 1x Single 250 mL Sample Bottle (SE-6938)
- 1x Micro USB Cable (PS-3584)
Product Specifications
Range | 0 to 100,000 ppm |
Resolution | 2 ppm |
Accuracy |
|
Warm-up Time | 3 min |
Response Time | 90% in 30 sec |
Operating Temperatures | -10 to 50°C (5 to 30°C ideal for LiPo charging) |
Metabolism Bottle Volume | 250 mL |
Metabolism Bottle Care | Warm soapy water (not boiling) |
Connectivity | USB and Bluetooth 5.2 |
Logging | Yes |
Battery Type | Rechargeable LiPo |
Battery Life | ≥18 hours of continuous use |
Battery & Logging
Stored Data Points Memory (Logging) 1 | >55,000 |
Battery - Connected (Data Collection Mode) 2 | >15 hr |
Battery - Logging (Data Logging Mode) 3 | 18 hr |
Battery Type | LiPo |
1 Minimum # of data points with all measurements enabled, actual results depend on enabled measurements.
2 Continuous use in a connected state until battery failure, actual results will depend on sample rate, active measurements, and battery condition.
3 Logging until battery failure, actual results will depend on sample rate, active measurements, and battery condition.
* Normal classroom use is the sensor in active use for 20min/lab for 120 lab periods/yr.
Data Collection Software
This product requires PASCO software for data collection and analysis. We recommend the following option(s). For more information on which is right for your classroom, see our Software Comparison: SPARKvue vs. Capstone »
Connectivity Options
This product can connect directly to your computer or device with the following technologies. No Interface required. See the following guide for details regarding device compatibility: Wireless Bluetooth Product Compatibility »
- Bluetooth Low Energy (BLE)
- Universal Serial Bus (USB)
Buying Guide
Recommended Accessories | P/N | Price |
---|---|---|
Dissolved CO₂ Waterproof Sleeve Required for measuring carbon dioxide in soil or water | PS-3545 | -- |
Metabolism Chamber | ME-6936 | -- |
Wireless CO₂ Sensor Storage Tray | PS-3598 | -- |
Wireless Sensor Charging Station Recommended charging solution for multiple sensors | PS-3599 | -- |
Replacement Parts | P/N | Price |
---|---|---|
250-mL Sample Bottles (4 Pack) | SE-6938 | -- |
Micro USB Cable | PS-3584 | -- |
Also Available | P/N | Price |
---|---|---|
USB Bluetooth Adapter Required by older computers without bluetooth 4.0 or later | PS-3500 | -- |
Product Guides & Articles
GIS with SPARKvue
Whether you’re introducing students to microhabitats, monitoring water quality, or conducting field work, the SPARKvue Map display unlocks a new world of spatial insights for you and your students to explore.
AP Biology Lab Manual Overview
PASCO’s award-winning teacher guide, Advanced Biology Through Inquiry Teacher Lab Manual, includes eighteen guided inquiry labs that cover AP Biology concepts such as osmosis and diffusion, evolution, energetics, and system interactions.
Wireless Gas Sensors
Wireless gas sensors are invaluable tools in modern science labs, revolutionizing the way researchers and students study metabolic processes, combustion, decomposition, and more.
Experiment Library
Perform the following experiments and more with the Wireless CO₂ Sensor (Carbon Dioxide).
Visit PASCO's Experiment Library to view more activities.
Cellular Respiration
In this lab, students use a carbon dioxide gas sensor to measure the rate of cellular respiration of germinating seeds. Students will design and conduct an experiment to investigate a variable that influences cellular respiration...
Cellular Respiration and Carbon Cycle
In this lab, students use a carbon dioxide sensor to compare the respiration of dormant bean seeds with germinating bean seeds. Students will observe the contribution of cellular respiration to the global carbon cycle.
Blockly Extension: Photosynthesis and Carbon Dioxide Emissions
Students use a carbon dioxide sensor and Blockly code to estimate how many actively photosynthesizing spinach leaves it would take to offset the excess carbon dioxide they add to the air from everyday activities.
Exercise and Calorie Expenditure
Students use a wireless oxygen gas sensor, wireless carbon dioxide gas sensor, and spirometer to estimate oxygen consumption and calories burned according to the cellular respiration reaction.
Gene Expression in Yeast
Students use a carbon dioxide sensor to investigate whether yeasts can immediately metabolize a sugar or if the genes required to metabolize the sugar are only expressed in response to favorable environmental conditions.
Modeling an Ecosystem
In this lab, students will design and study three, small ecosystems. Students will manipulate system interactions while monitoring gas exchange, environmental conditions, and subject health.
Cellular Respiration in Animals
In this activity, students will quantify the rate of cellular respiration for a macroinvertebrate or fish and determine the oxygen consumption rate.
Energy Dynamics
Students use EcoChamber containers and a carbon dioxide gas sensor to estimate energy flow and carbon cycling within a variety of detritus-based ecosystems.
Toxicology Using Yeast
In this lab, students will use a carbon dioxide gas sensor and pH sensor to evaluate pH's role in toxicity and the role of cell culture in toxicology studies.
Photosynthesis
In this lab, students test how light influences the rate of photosynthesis.
Photosynthesis
Students use a carbon dioxide gas sensor to test the effect of the color of light on the rate of photosynthesis.
Plant Respiration and Photosynthesis
Students use a carbon dioxide gas sensor to measure the rates of photosynthesis and respiration in spinach leaves.
